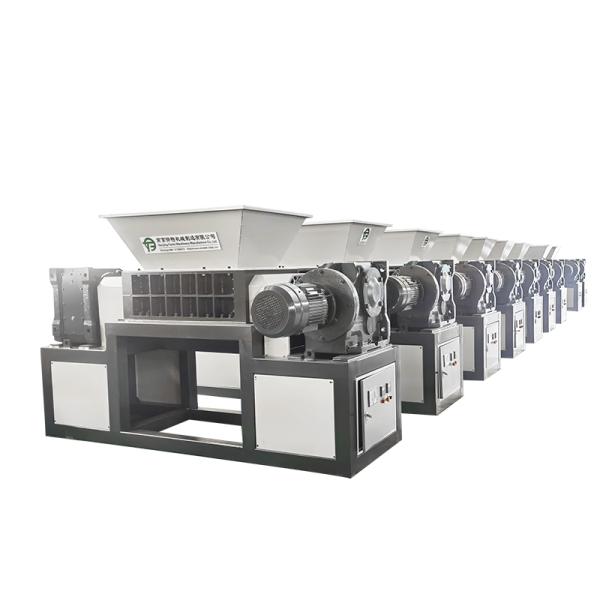

Waste Metal Scrap Paper Recycling Shredding Equipment

Name: Waste Metal Scrap Paper Recycling Shredding Equipment
Brand: Fante
Price: 1 USD

Buy cheap Waste Metal Scrap Paper Recycling Shredding Equipment product

Place of Origin : Jiangsu, China

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Bearing, Gearbox, motor, Gear

Brand Name : Fante

warranty : 2 years

material / metal processed : Carbon Steel, Aluminum

power (kw) : 44

weight (kg) : 2000

key selling points : Automatic, Multifunctional, High Safety Level, Competitive Price, High Productivity, Energy saving, Eco-Friendly, Long Service Life, High-accuracy, Easy to Operate

Application : Recycle Waste Metal

Name : Shredder Machine

Raw material : Used Metal Material

Function : Recycle Metal

Keyword : Metal Shredder Crusher

Product name : Metal Recycling Shredder

Input Materials : Scrap Waste

Final product : 2-10 Cm

Usage : Crushing Recycling Metals

After-sales Service Provided : Online Support

Contact Now

Waste Metal Scrap Paper Recycling Shredding Equipment

Our factory specializes in the production of heavy-duty industrial shredders and offers one-stop solutions for solid waste management. Our heavy-duty industrial shredders are designed to efficiently and effectively shred various types of materials, including but not limited to, plastics, rubber, wood, metal, and solid waste. With robust construction and powerful motors, our shredders can handle large volumes of waste and provide reliable performance. Equipped with advanced shredding technology, our heavy-duty shredders ensure precise and consistent shredding results. The shredding process is controlled and optimized to achieve the desired output size and minimize the energy consumption. Our shredders are built to withstand the demands of heavy-duty applications and offer long-lasting durability. In addition to their shredding capabilities, our heavy-duty industrial shredders also prioritize safety. They incorporate various safety features, such as emergency stop buttons, safety locks, and protective shields, to protect operators and prevent accidents. With our one-stop solution for solid waste management, we provide customized system designs that integrate the shredders into the waste processing line. This includes feeding systems, sorting equipment, and waste conveyors, ensuring seamless integration and efficient operation. Overall, our heavy-duty industrial shredders are the solution for businesses in need of effective and reliable waste management. Trust our expertise in providing high-quality shredding solutions that meet your specific requirements.

◼︎ The equipment is made up of two blades on two shafts that cut each other to meet the requirements of shredding materials. The size of the shredded material is related to the thickness and number of teeth of the shredded blade. The thinner the blade, the smaller the size of the shredded material. The more teeth the blade has, the shorter the length of the shredded material. ◼︎ The device adopts a low speed and high torque design, which has the characteristics of high shear force, good tearing effect, low noise, and good stability. ◼︎ Generally used for crushing soft materials, such as household waste, fabric scraps, household waste, fruit and vegetable waste, paper mill waste, medical waste, RDF fuel, etc.

Model	FTHS-600	FTHS-1000	FTHS-1200	FTHS-1600	FTHS-1800	FTHS-2000
power(kw)	11-15	30-75	37-150	150-264	150-220	150-500
Breaking chamber length(mm)	600	1000	1200	1600	1800	2000
Blade Size(mm)	⌀300-⌀800
Reducer	ZSY Or Planetary reducer

01.Chamber

The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.

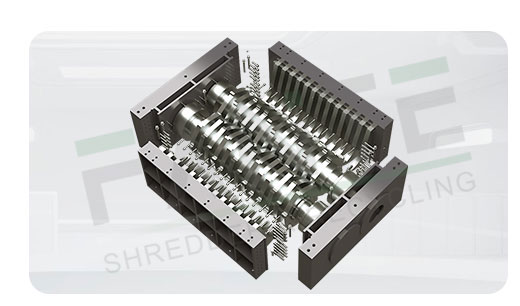

02.Shaft and Blade

It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.

03.Bearing seal

The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.

04.PLC

PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.

Waste Metal Scrap Paper Recycling Shredding Equipment Images
